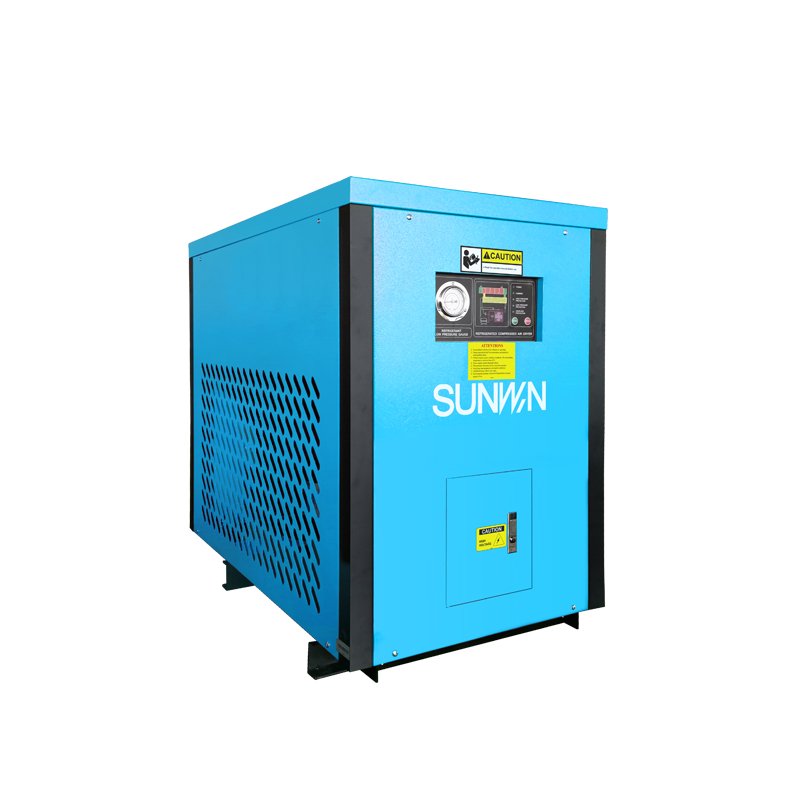

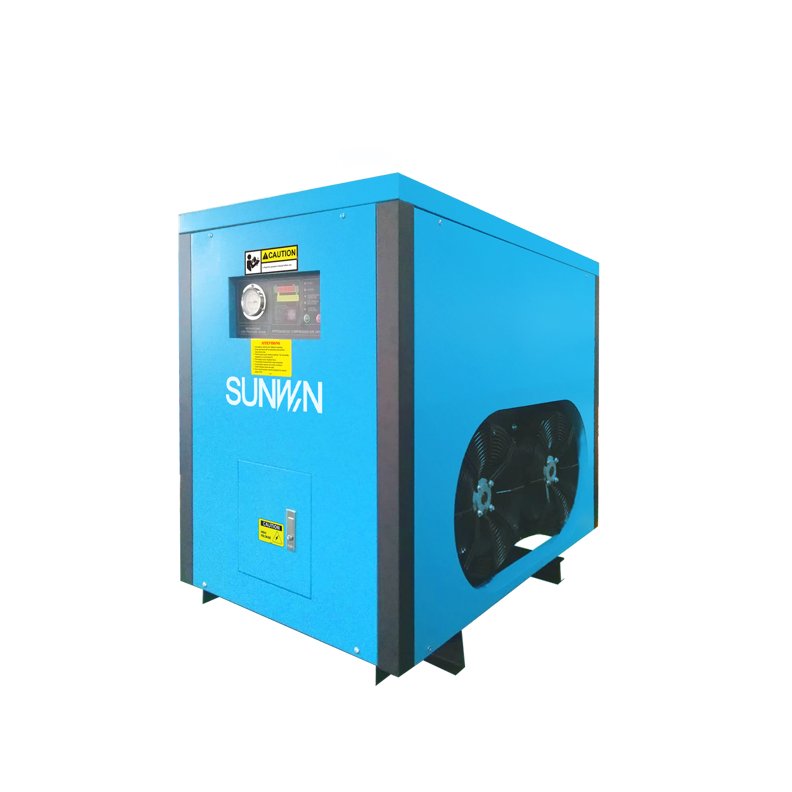

Industrial Air Dryer for 55KW 75HP Air Compressor

$1,000.00

The CSW series refrigerated industrial air dryer for 55KW 75HP have the extremely strong construction with shell and tube with stainless steel pipes, ensures safe and continuous operation in any conditions.

分类:

描述

The CSW series refrigerated industrial air dryer for 55KW 75HP have the extremely strong construction with shell and tube with stainless steel pipes, ensures safe and continuous operation in any conditions.

Reliable and innovative non-cycling refrigerated industrial air dryers are an ideal and affordable solution to remove moisture from your compressed air system. The CSW Range of dryers are manufactured based on an innovative, cost-effective design to reduce the potential for damage and downtime created by poorly treated compressed air.

其他信息

重量 240 公斤
尺寸 1.18 × 0.67 × 1.08 厘米
Model Number

CSW-10HTF

Capacity

10.7m3/min(375cfm)

Pressure Dew Point

2~10℃

Working pressure

≤1.3MPA (13bar)

Max.inlet temperature

80℃

Refrigerant

R22, R410A

Max.Ambient temperature

40℃

Min.Ambient temperature

5℃

Cooling type

Air-cooling
